TokenTV — AI usage on a $5 desk clock

Prologue

The clock thinks it is a photo frame 🖼️

These clocks ship with vendor firmware, no source, and no warranty worth the name. Replacing it means opening the case and soldering. So TokenTV doesn't. It uses a feature the stock firmware already has: a photo album with an HTTP upload endpoint, and a theme that shows a photo full-screen.

🖥️

A computer that stays on

Reads and draws

Reads your usage through each provider's own login, then draws a 240×240 picture with Pillow.

📤

Plain HTTP

Uploads a photo

Posts the image to the clock's album and selects the photo theme. No firmware, no agent, no SDK.

🕰️

The clock

Displays a picture

It has no idea what it is showing. That is the whole point: nothing on the device can break.

Why this constraint is the design. Everything awkward in the project descends from one fact: the only way to change a single pixel is to upload a whole image and have the device store it in flash. That is why there is a write budget, why countdowns are rounded, and why identical frames are never re-sent.

Chapter 01

What is actually inside 🔌

Identified by disassembling the vendor firmware and cross-checking against open-source ports for the same board. The USB-C port is power only — there is no serial chip — which is why the device is driven entirely over Wi-Fi.

THE VISION · CONCEPT TEASER

AI Product & Form Concept

The 3D generative vision for TokenTV as a dedicated desk appliance: retro TV casing, neon underglow, speed gauges, and token progress meters.

🎧 Click Unmute for voiceover & sound (10s)

THE REALITY · LIVE ON DESK

Real 240×240 IPS Hardware

The animated hybrid face running on the physical $5 white clock: pixel mascot strolling the divider rule, starfield twinkle, and live AI quotas + market changes with stock firmware.

Get the $5 Clock on AliExpress →

Part	What it is
Device	AliExpress mini weather clock / electronic photo album (1.54″ retro TV chassis)
MCU	ESP8266, ESP-12F class, running the Arduino ESP8266 core on the NONOS SDK — not an ESP32
Flash	4 MB GD25Q32C, brought up in QIO mode
Panel	240×240 IPS, ST7789 family, SPI mode 3 at 40 MHz, BGR order, inversion on
Pins	SCLK 14, MOSI 13, DC 0, RST 2, backlight 5 (active-low), CS unused
Filesystem	LittleFS, ~2.98 MB, holding photos, fonts and the web pages
Settings	Emulated EEPROM — a single 4 KB sector with no wear levelling
Input	None. No buttons, no touch. It is a display.
Discovery	None. No mDNS, no MQTT, no WebSocket — you read its address off a 1.5″ screen

The RAM wall. A full 240×240 16-bit frame buffer is 115,200 bytes. The ESP8266 has roughly 40–50 KB of usable heap. No firmware for this board — vendor or open-source — can buffer a whole frame, so JPEGs are decoded in small tiles and pushed straight at the panel. It is also why rendering on a real computer and shipping one finished image is the right division of labour.

FIRMWARE ARCHITECTURE

The Two Factory Channels & The Hidden GIF Slot

Disassembling and probing the vendor firmware revealed that the clock's factory brain is split into two mutually exclusive channels:

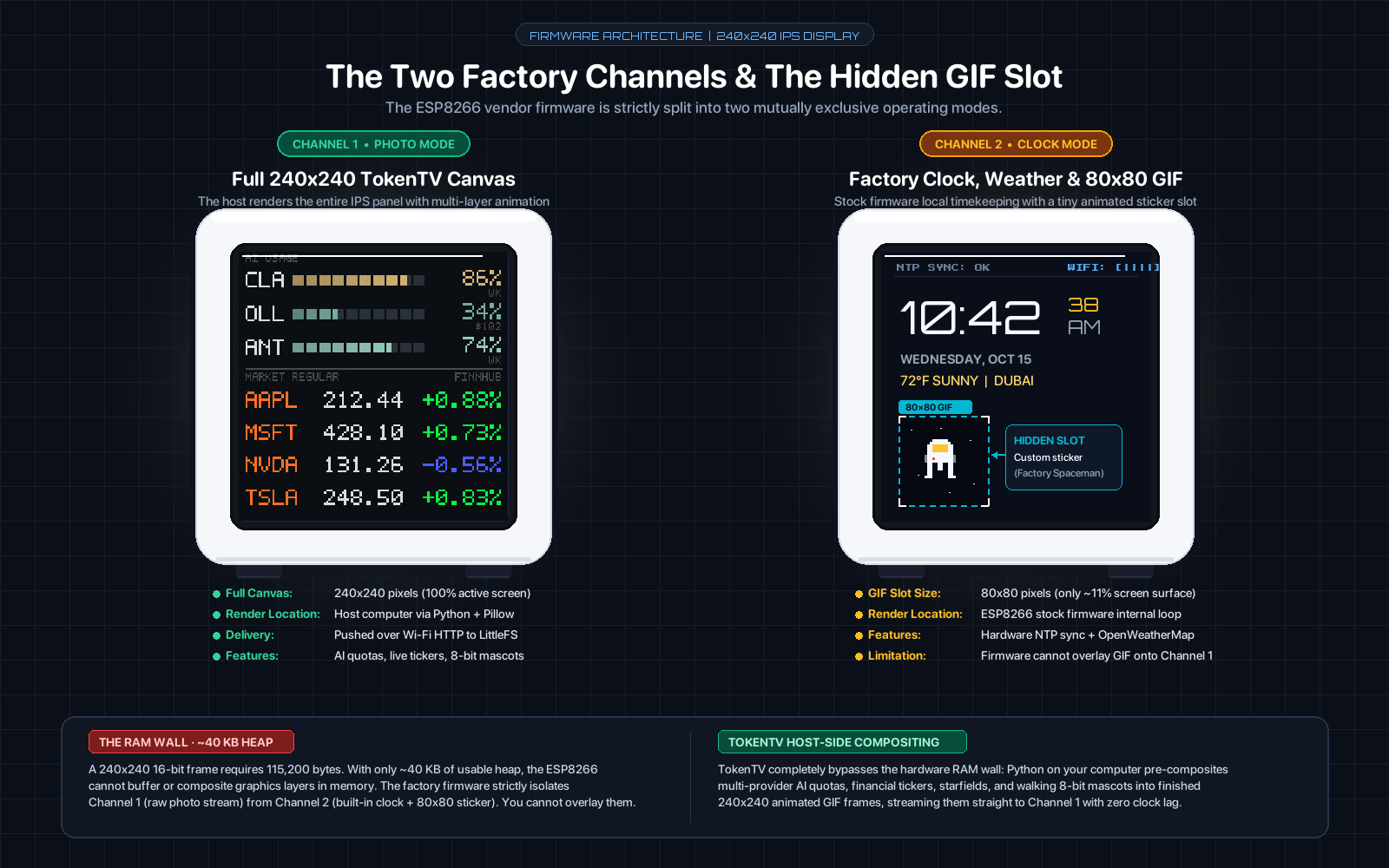

The Two Factory Channels: Photo Mode (TokenTV) vs Clock Mode (Firmware)

CHANNEL 1 · PHOTO MODE

Full 240×240 TokenTV Canvas

What TokenTV drives: the host computer renders full-screen 240×240 frames or animated GIFs over HTTP. The clock displays it 24/7 with zero local computation.

• 240×240 Full Screen • Host-Side Compositing • Zero Clock Lag

CHANNEL 2 · CLOCK MODE

Built-in Time, Weather & 80×80 GIF

The vendor mode: syncs NTP clock and OpenWeatherMap weather, playing a tiny 80×80 animated GIF sticker (the factory floating spaceman) in the lower corner.

• Stock NTP & OpenWeather • Undocumented 80×80 Slot • Confined to ~11% Screen

💡 The Discovery — The Hidden GIF Slot: The factory astronaut in Channel 2 is not hardcoded in ROM; the firmware exposes an undocumented internal upload slot where the GIF can be replaced with custom animated 80×80 stickers (like an Antigravity sparkle or mascot).

🧱 The Catch — The ~40 KB RAM Wall: Because the ESP8266 has only ~40–50 KB of heap (less than a single JPEG frame), the firmware lacks the memory to composite layers. It cannot overlay the animated sticker onto Channel 1's canvas. It is strictly Channel 1 OR Channel 2.

🚀 The Solution — Host-Side Compositing: TokenTV solves this by handling 100% of the layer compositing in Python on your computer: rendering walking pixel mascots, twinkling starfields, and live telemetry into a single pre-rendered animated GIF stream pushed straight to Channel 1.

Chapter 02

From an API call to a picture 🔀

Python 3.10+ with Pillow as the only runtime dependency. No database, no queue, no container, no cloud. Persistent state is a handful of JSON files and the last image uploaded.

One process owns the clock. The watchlist runner is a feeder: it writes a snapshot file and never touches the device, which is what stops two publishers fighting over the same photo.

↔ scroll the diagram sideways

One clock, one owner. A second publisher pointed at the same clock fights over the filename and over which saved backup is authoritative. So the watchlist runner drops its device address entirely and becomes a pure feeder, writing only a snapshot file. The usage runner reads that file and stays the single process that backs up, uploads and re-asserts the display. The conflict is removed by construction, not by coordination.

Follow-the-Sun markets. Financial markets don't share hours. The feeder continuously matches UTC timestamps against world trading sessions: routing to zero-config Yahoo Finance for Indian equities (09:15–15:30 IST) when Asian markets open, and switching over to Finnhub for US equities (09:30–16:00 ET) when New York wakes up. During off-hours, the ticker gracefully folds, returning 100% of the display to AI usage.

Unknown is never zero. A failed read keeps the previous values and marks the row stale rather than reporting 0%. A missing reset time renders as a dash. An identity mismatch blanks the numbers instead of showing another account's. A wrong number is worse than no number on a display you glance at.

Layer	Technology	Role & Rationale
Host Runtime	Python 3.10+	Native execution alongside official CLI tools; zero build or container footprint.
Imaging	Pillow (PIL)	Sole dependency; draws 240×240 pixel glyphs, adaptive font scales, gauges, and animated GIFs.
Market Data	Finnhub & Yahoo Finance	Finnhub for US equities (Keychain key); zero-config v8 chart API for Indian NSE/BSE equities.
Networking	urllib.request	Dependency-free standard library HTTP client for upstream REST polling and LAN uploads.
Process Supervisor	macOS launchd	Always-on background LaunchAgents (`com.tokentv.clock` and `com.tokentv.stocks`) with auto-restart.
Storage	Atomic JSON & LittleFS	POSIX atomic snapshot files on host; wear-levelled copy-on-write LittleFS on clock.

Chapter 03

Eight faces, one snapshot 🎨

Every face is a Python function that receives the same normalised reading and draws a 240×240 image. Swapping face is a dropdown, not a redeploy. All renders below are from the project's sample data.

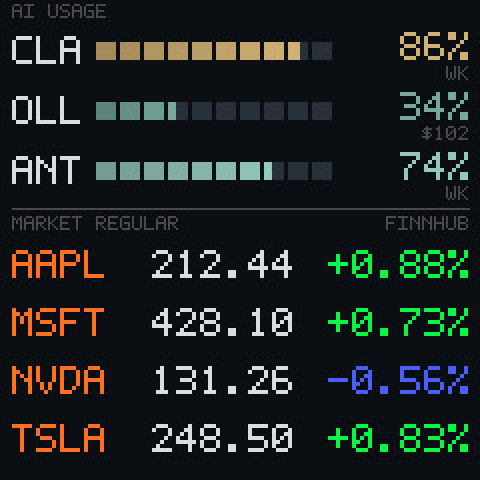

combo

Both datasets on one screen with follow-the-sun global market routing. Three AI rows with usage gauges and the window each percentage is of, then four share rows. When Indian markets open (09:15–15:30 IST), it displays NSE large caps with dynamic INR font scaling; when US markets open (09:30–16:00 ET), it switches to US equities with an active exchange badge (NSE or US). Outside market sessions, it hands the entire canvas back to the full-size AI usage face.

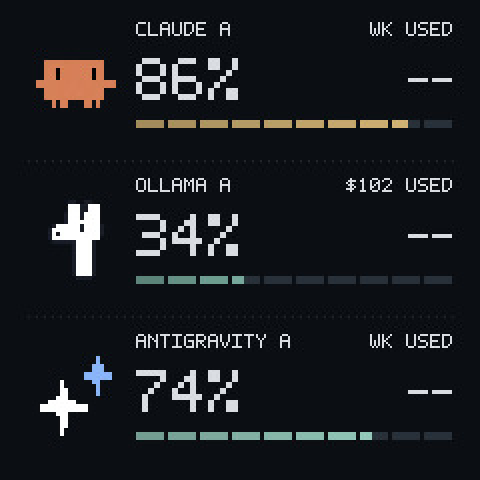

pixel

Hand-drawn 5×7 glyphs, no font files

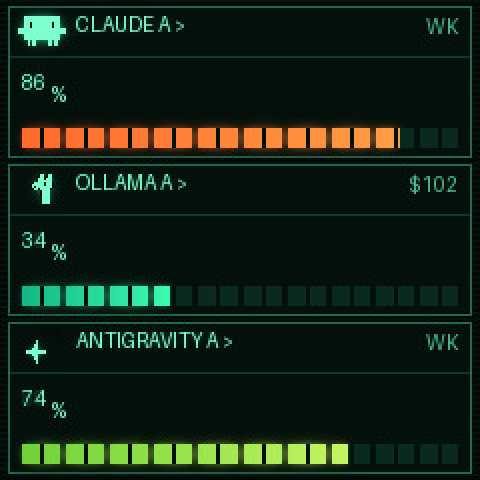

digital

Seven-segment, with a clock for short windows

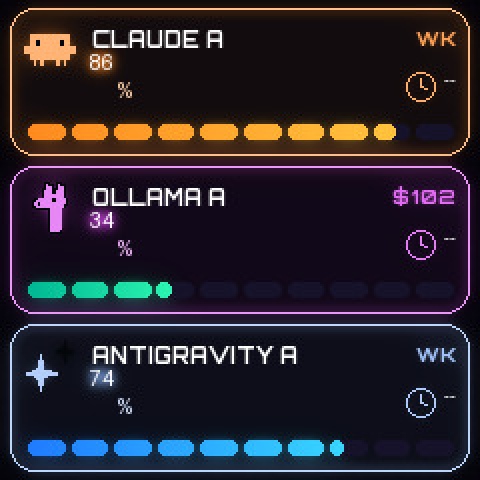

neon

Glow and rings

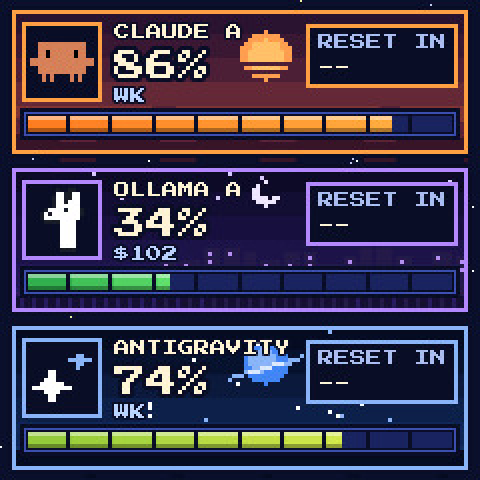

retro

Pixel scenes per provider

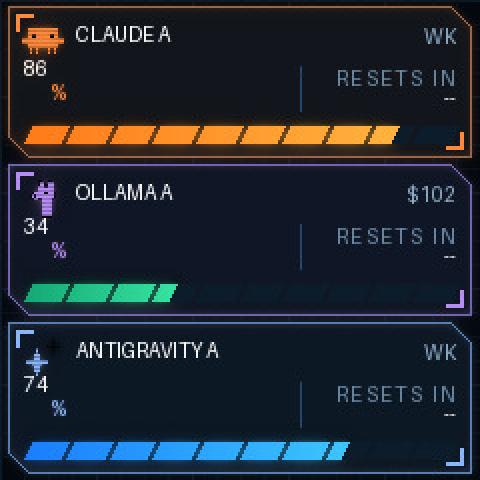

hud

Instrument panel

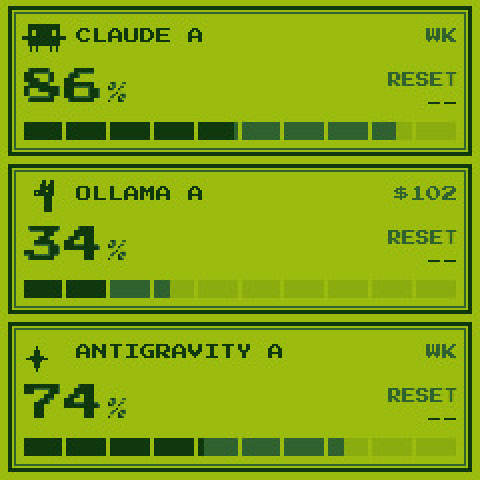

gameboy

Four shades of green

There is a ninth, space, which returns an animated GIF rather than a JPEG — so the publisher picks the filename from the image's magic bytes rather than from the style name.

Chapter 04

The part that was actually hard 💾

The clock keeps every frame in flash, and flash wears out. The obvious guard — skip the upload when the bytes are identical — turns out not to be enough, and the reason is worth stating because it is easy to get wrong.

The dedupe never fires when it matters. When a short usage window leads, the face shows a countdown in minutes. That countdown changes on every poll, so every frame differs and the byte comparison never matches. Measured at the default five-minute poll: twelve distinct frames an hour, every hour you are working.

Byte dedupe — an identical frame is never rewritten.
Countdown bucketing — the countdown is rounded up to whole buckets, so the face changes when the remaining time crosses an edge rather than every minute. A steady hour drops from twelve writes to four.
A spaced write budget — uploads are spaced rather than given a quota. A quota lets a busy hour spend its whole allowance in the first twenty-five minutes and then freeze the display on a stale frame, which is the opposite of useful.
A data-change override — the readings are fingerprinted separately from the countdown, so a percentage or price that actually moved bypasses the budget and goes out at once. A budget that defers real news is worse than no budget.

The two red paths both end in an upload. A reading that genuinely moved never waits for the budget — the cap exists to absorb idle churn, not to withhold new numbers.

↔ scroll the diagram sideways

A watchdog, because once was not enough. The call that selects the photo theme used to run only when the output filename changed — that is, once. A clock that reboots, or that someone opens in its own web UI, silently reverts to its own theme while uploads keep succeeding into a photo nobody is looking at. It is now re-asserted periodically.

A quality ladder, because the limit is hard. The firmware rejects an oversized upload outright. A busy face can cross that limit on its worst frame and simply stop updating with no visible error, so the encoder steps quality down, then chroma, until the frame fits, and records what it chose.

Two flash regions, and only one of them forgives you

Disassembling the firmware settled a question that had been shaping the design. The photo album is LittleFS — copy-on-write and wear-levelled, so a rewritten file lands on fresh blocks. That moved the wear estimate from months to the order of a decade, and demoted the write budget from a safety mechanism to good hygiene.

The settings are a different story. Everything written through the settings endpoint — brightness, the night window, the accent colours — lands in the ESP8266's emulated EEPROM: one 4 KB sector, rewritten whole on every commit, no wear levelling, holding the Wi-Fi credentials beside the display settings. That asymmetry kills an idea that looks attractive from the outside: using the accent colours as a cheap status channel, since they need no image upload. They are not cheap. They are the most fragile flash on the device.

Chapter 05

What this was built from 🧬

TokenTV is a fork, and the original idea is not mine. This section is the honest ledger of which side of the line each piece came from.

🌱 The original

The core insight — drive a stock-firmware clock by uploading pictures to its photo album
The device layer for both clock API profiles, and the backup/restore flow
Five clock faces and the web dashboard
The Apple Watch endpoint
The published demo and the project's Hackaday write-up
SmallTV-Ultra support contributed by Ye Thi Ha Htwe

Research prior art

📚 Standing on

adrienbrault/geekmagic-hacs — the only other project that documents and implements this exact clock's API profile
bvweerd/geekmagic-tv-esp8266 and its forks — open-source firmware for the same board, which confirmed the pin map and panel

Chapter 06

What I contributed 🔨

Twenty-three commits over three days, on top of the fork point. Two new providers, a second data domain, the flash-write discipline, and the hardware study that corrected the assumption underneath it all.

23commits, excluding merges

+2,385lines of Python, including tests

143tests passing

2providers replaced

How this was built. Built in collaboration with multiple autonomous AI agents — Claude, Antigravity, and OpenCode — which is part of the point: the project is as much an exercise in orchestrating specialized agents and multi-agent pair programming as it is a desk clock. The firmware disassembly, the flash-wear measurements, the animated faces, and the design arguments came out of that collaborative loop; the orchestration, physical clock testing, and engineering decisions are mine.

Two providers swapped, and one taken much further

Upstream shipped Codex and Grok. Both were replaced — Ollama Cloud and Antigravity. Ollama then needed real work: its limit is a monthly credit budget rather than a quota, so the allowance is derived from the account plan, spend is read over the credit period and labelled in dollars, the face counts down to the refill, and the account is verified against the email the API reports.
sources.py · usage.py · themes.py
A second data domain: a follow-the-sun share watchlist

A dual-source global watchlist face with follow-the-sun market routing: Finnhub for US equities during American trading hours, and zero-config Yahoo Finance v8 chart API for Indian NSE/BSE equities during Asian hours — automatically switching tickers, scaling 5-digit INR valuations, and yielding to full AI token metrics during off-hours.
stocks.py · 774 lines
Flash-write discipline

Countdown bucketing, a spaced write budget, a data-change override, a photo-theme watchdog and a JPEG quality ladder — each one fixing a specific way the display could silently stop being true.
display.py · device.py · live.py
Both datasets on one clock

The combo face, plus the ownership split that makes it safe: the watchlist runner became a pure feeder, so exactly one process owns the device. The market half only exists while the market does.
combo.py · live.py
The clock's own settings, and its identity

Brightness and the night window moved out of the device's web UI and into version-controlled config, applied only where they differ. The clock is now pinned by MAC address, because a DHCP lease can move an address between identical-looking devices and nothing else would notice.
device.py · sources.py
A hardware study that changed the design

Disassembling the vendor firmware established the chip, the panel, the route table and the pin map — and corrected a wrong assumption about the filesystem that had been inflating the flash-wear estimate by an order of magnitude. It also turned up a firmware quirk the hard way: deleting one photo silently re-enables every remaining one.
Ghidra · 2,809 functions recovered
Documentation the fork did not have

A changelog, an architecture document, a firmware and HTTP-surface reference, three generated interactive diagrams that cite the source lines they were built from, and an agent guide for whoever works on it next.
+802 lines of prose

Chapter 07

What would come next 🔭

Proposed · not built

The limitation worth attacking is not wear. It is the contract: the only way to change a pixel is to store a whole image. A custom firmware could change the device from a picture frame you rewrite into a display you draw on — accepting a frame over HTTP, decoding it straight to the panel in tiles, and never touching the filesystem at all. The write budget would stop existing, and every existing face would keep working, because the rendering stays on the host.

It is a weekend's work and a £5 serial adapter, plus a full flash backup first, because the vendor image restores the firmware but not the photos. Whether that is worth opening the case is a separate question from whether it would work.
